Slide Cabinet WSLC-1680
Product Overview:
The WSLC-1680 Slide Cabinet is designed for the long-term, high-density storage of microscope slides, including stained pathological sections used for diagnostic review and teaching. As one of the most frequently accessed archives in pathology, the cabinet ensures orderly organization and rapid retrieval to support daily diagnostics, complex case discussions, and medical education. It is widely deployed in hospital pathology departments, medical laboratories, and teaching institutions.
Specifications:
• Durable Construction: Built from 0.8 mm Baosteel cold-rolled steel plate, Surface treated with acid washing + phosphating, Finished with high-temperature epoxy resin powder coating for corrosion resistance and long service life, All structural components are single-mould formed for enhanced rigidity and stability
• Smooth Drawer Operation: Equipped with engineering-plastic mushroom-head handles, Smooth operation suitable for high-frequency daily access

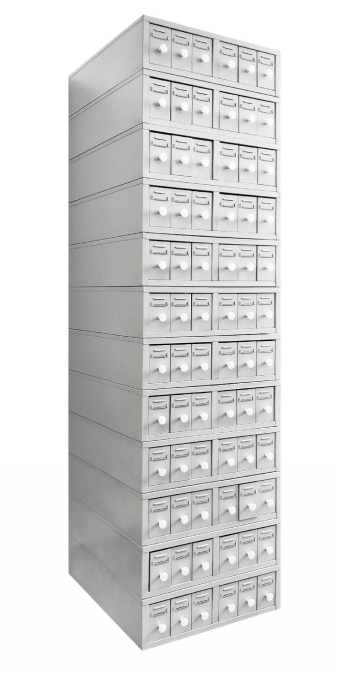

• High-Capacity Storage: Dimensions per unit: 500 × 450 × 1680 mm, Each full set consists of 12 stackable units, each measuring 500 × 450 × 130 mm, Base dimensions: 500 × 450 × 120 mm, 6 horizontal drawers per unit, totalling 72 drawers per set, Approximate storage capacity: 60,000 slide per set, Ideal for large-volume pathology workflow
• Flexible Configuration: Cassette cabinets and slide cabinets are stackable, enabling modular expansion, Compatible with diverse laboratory layouts, Optional lockable version available

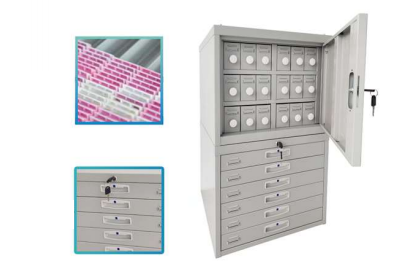

• Lockable Version (Optional): Dimensions per unit: 500 × 540 ×400 mm (length × depth × height), Provides secure storage for controlled-access environments
Application Scenarios:
• Hospital pathology departments
• Independent diagnostic laboratories
• Forensic identification agencies
• Medical universities and research institutes
• Biobanking and archival facilities
